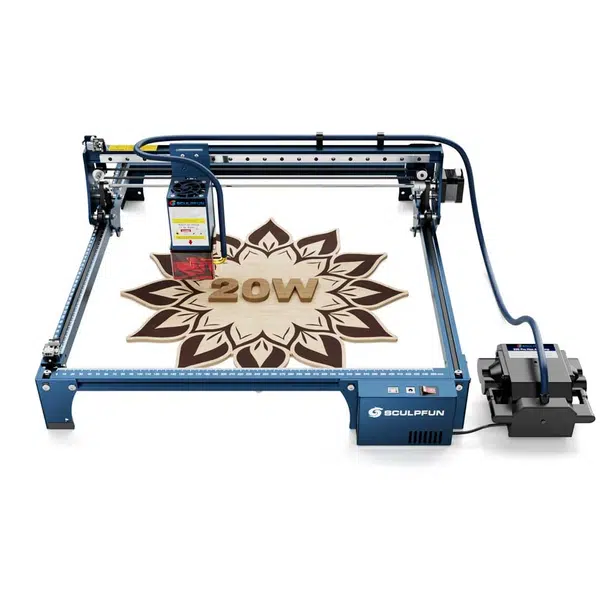

SCULPFUN S30 Pro Max 20W Laser Engraver Cutter

Product Description

Sculpfun S30 Pro Max Main FeaturesSculpfun S30 Pro Max equips a 20W quad-diode laser module with a replaceable protective lens underneath that will make it possible to keep your engraver in top condition for many years!Sculpfun S30 Pro Max uses the same focusing method as the brand`s models including the Sculpfun S10 and Sculpfun S9. The laser module is held on a sliding rail with thumbscrews on the back. The focusing is done by setting the correct distance between the laser module and the work material with an aluminum focusing block which sets the distance to 40mm.The air assist pump of the Sculpfun S30 Pro Max outputs 30 l/min and can be enabled via control software (Lightburn) for only the specified engraving layers. This is great because you can engrave one project that has multiple operations and for example you can select to turn off the air assist for engraving and turn it on for laser cutting only. The air assist pump already comes with the machine.Automatic Air-assist0.080.1mm Laser Focus32-bit MotherboardReplaceable LensEngraving Size 410400mmExpandable to 935905mmAutomatically Controlled Air Assist SystemSculpfun S30 series is equipped with an air-assist 32-bit motherboard and a control-type air pump which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button this makes the engraving and cutting very clean and is very suitable for the manufacture of exquisite gifts.Built-in High-Pressure Air Assist NozzleS30 series is equipped with an advanced high-pressure air-assisted metal nozzle which can generate 30L/min high-pressure airflow under the air pump greatly improving the cutting efficiency and the cutting speed is more than 5 times faster than that without air assist.Ultra-thin 20W LaserAdopting ultra-thin laser shaping technology the laser focus of the S30 series is as thin as hair and very powerful for engraving or cutting. The S30 Pro Max 20W pursues the ultimate cutting speed suitable for professionals shops or factories.Replaceable Protective LensS30 series laser adopts an innovative replaceable lens which greatly improves the service life of the laser which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use the lens can be replaced to restore the cutting power.Expandable Engraving AreaThe original engraving area is about 410x400mm while it features XY-axis expandable design so you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade up to 935x905mm engraving area which can help you better handle large area engraving or cutting work.Upgraded 32-bit Air-assist MotherboardThe latest 32-bit motherboard supports automatic air-assist control and reserves Bluetooth and SD card offline printing function. (Upgrade Kit sold separately)Industrial-grade Cutting Accuracy Extremely solid and high-precision linear slide rail X-axis make it reach industrial-grade engraving accuracy. When comparing small engraving details the S30 series does not have the wavy pattern that appears in ordinary engraving machines.Sturdy and Durable Aluminum Alloy FrameMade of high-strength aluminum alloy its frame can bear up to 50 kg weight without damage and is very durable. The frame can be used for a long time and maintain high precision only need to upgrade the latest laser when the machine needs to be upgraded.Safety DesignThe presented A4 size steel pad can well protect the table from laser damage. There is an eye-catching power switch on the machine you can directly and quickly turn off the power in an emergency.Right-angle Measuring RulerThere are precise scale lines on the X-axis and Y-axis to form a right-angle measuring ruler which is convenient for you to quickly measure the size of the engraved object.Note1. Because of the powerful laser power it is forbidden to run the engraving machine without being supervised. Pause it if you're not around.2. For detailed machine instructions please refer to the manual for parameter settings.3. When operating the laser engraving machine please install the laser protective cover; if it is not installed you need to wear goggles.4. Do not touch the laser with your hands otherwise you may burn your hands.5. Please avoid a strong impact on the machine.6. It is forbidden for children under 14 years old to use this product and children over 14 years old need adult supervision. 7. Do not apply the laser directly to any specular reflection object which may cause injury to the operator or burn the laser.
